Ranger P2X

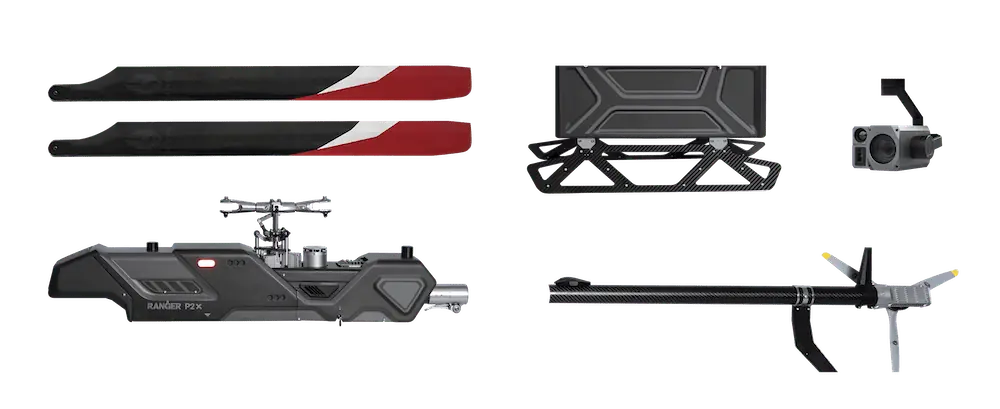

The Ranger P2-X is a long-endurance unmanned helicopter drone that features a modular quick-disassembly design, allowing the aircraft to be broken down into four modules and packed into a bag for easy transport.
Ranger P2X Overview
The Ranger P2-X is a long-endurance unmanned helicopter drone that features a modular quick-disassembly design, allowing the aircraft to be broken down into four modules and packed into a bag for easy transport. With a flight endurance of up to 2 hours, an operational range of 100km and a data transmission range of up to 30km, it is ideal for a wide range of surveillance and mapping applications.
The VTOL (vertical take-off and landing) UAV can take off and land from moving platforms, and can be equipped with a variety of payloads for multi-mission flexibility, including electro-optical (EO) and infrared (IR) imaging systems. The rugged unmanned helicopter can operate in harsh environmental conditions including temperatures down to -20°C, and has a verified flight ceiling of 5100 metres.
Ranger P2X SPECIFICATIONS
| Dimensions | Without rotor blades: 1690*247*495mm |
|---|---|
| Max Take-off Weight | 18.5kg |
| UAV Weight | 5.7kg |
| Max Payload | 1.5kg |
| Cruising Speed | 50-70km/h (max 100km/h) |
| Wind Resistance | Level 6 |
| Endurance | 120 min (without payload) |
| Max Operating ASL Altitude | 5000m |
Ranger P2X Accessories
Ranger P2X complete platform 1 Unit
• Handheld Ground Control Station 1set(Including ground station control software)
• Main Rotor Blade 1set
• Tail Rotor Blade 1set
• General tool box 1set
• Ground system integration box 1set
（Including batteries）
• Tripod 1set
• Tripod cloud platform 1set
• Tripod extension rod 1pcs
• Power battery 1set
• Power battery charger 1set
• Power battery charging transfer line 1set
• Ground system integration box charger 1set
