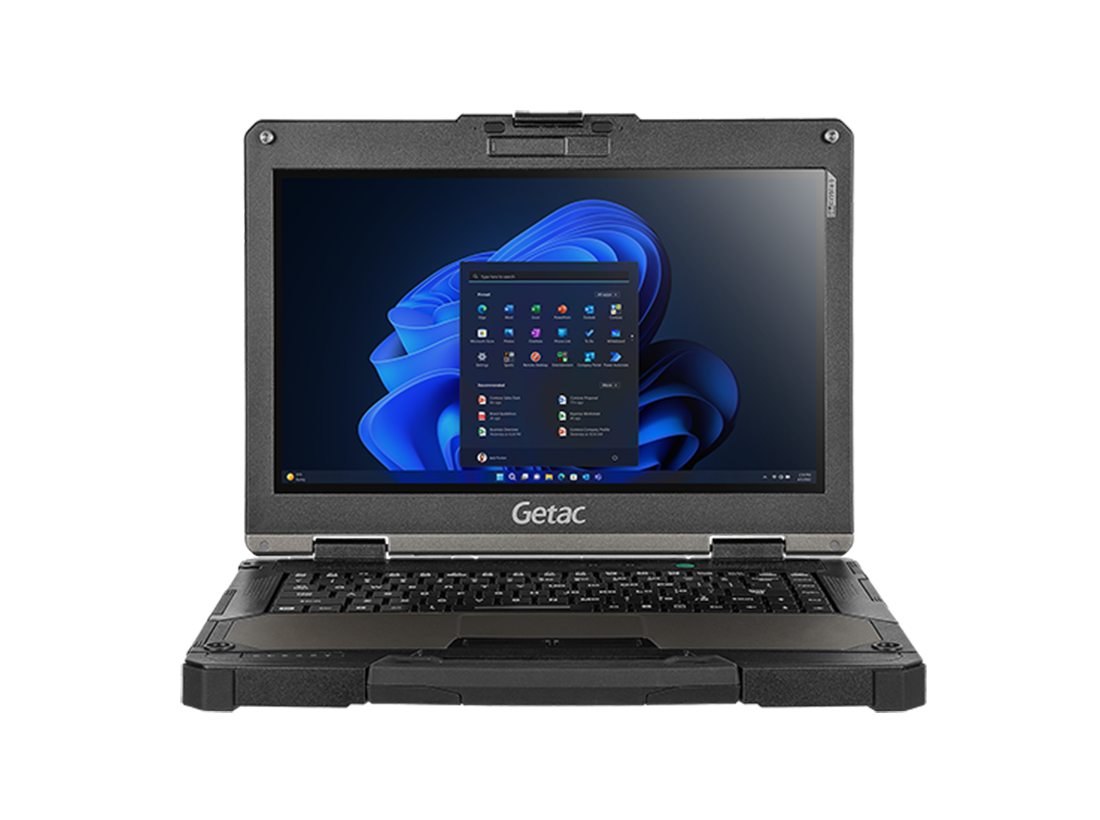

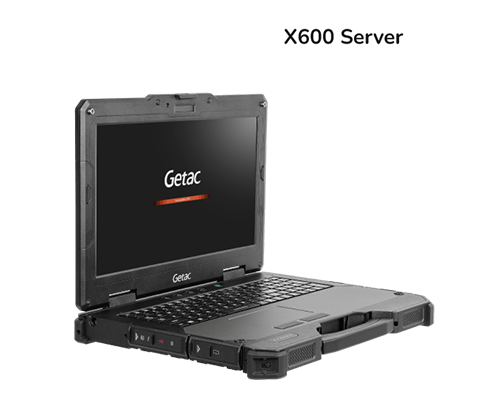

GETAC X600 Server

Your Fully-Rugged Mobile Command Server

With data exchange, storage, and management capabilities in a fully-rugged notebook, X600 Server enables mobile command and control.

Get In Touch

Industries using X600 Server

COMMAND & CONTROL IN A BRIEFCASE

A fully-functional commercial off-the-shelf (COTS) mobile server that folds to a slim portable profile, X600 Server is designed for field agility while retaining comprehensive server capability. It is a fully-rugged and highly-versatile laptop that delivers the capabilities of a cabinet-housed mobile server, deployable in mobile command-and-control scenarios at a moment's notice.

FLEXIBLE RESOURCE ALLOCATION

X600 Server is capable of hosting multiple independent virtual machine platforms, minimizing your need to invest in multiple server systems. And with its Windows Server 2022 operating system, resources can be allocated flexibly to different virtual systems according to respective user needs. Disk management is enhanced through its hardware-based RAID controller with RAID 5 configuration providing an optimal balance of capacity, performance, reliability, and security.

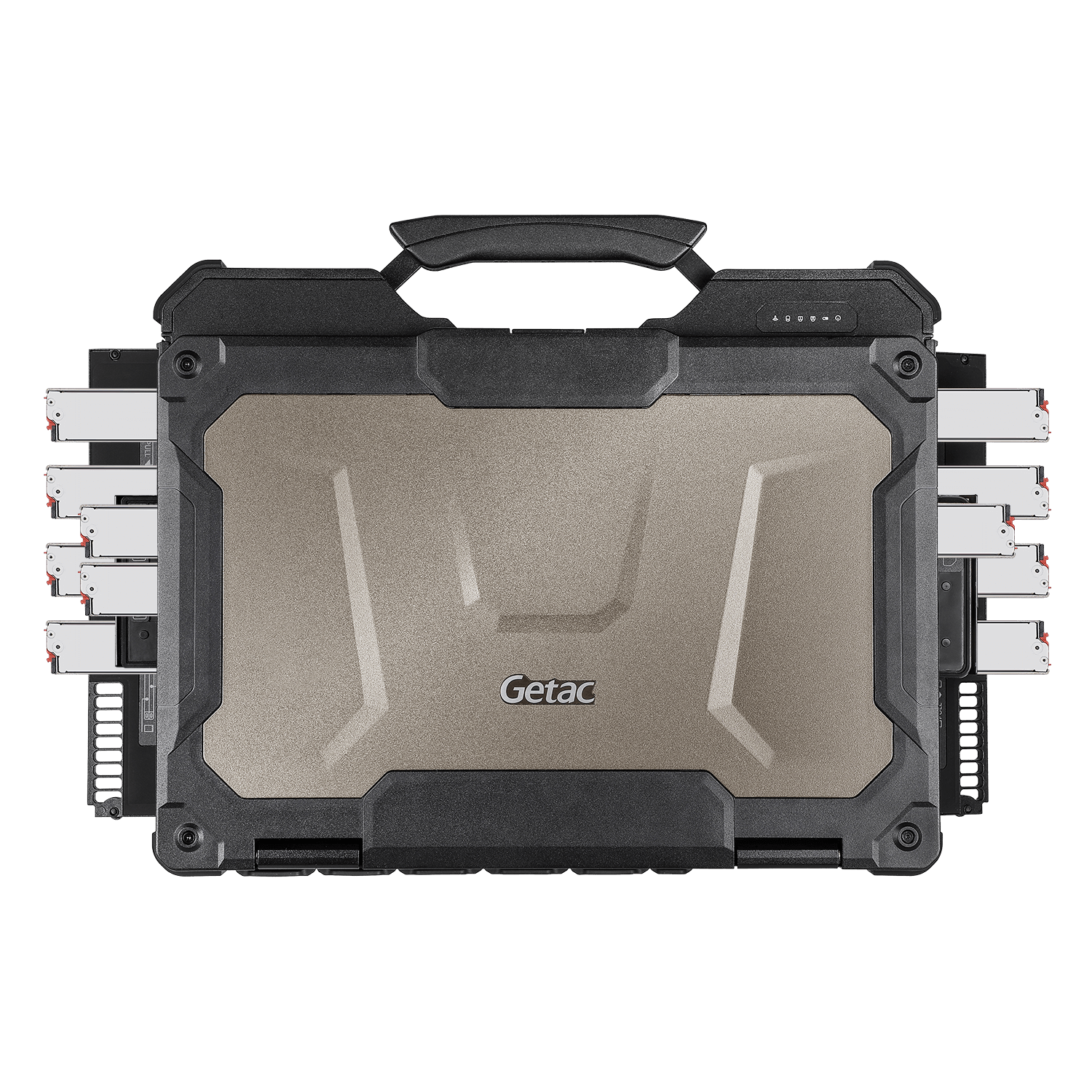

BIG DATA ON THE FRONTLINES

X600 Server can be enhanced with hardware-based RAID control for improved data storage flexibility, reliability, and redundancy. X600 Server boosts optional data storage up to 22TB1, a DVD (or optional Blu-Ray) super multi-drive, up to two additional batteries, and both ExpressCard 54 and PCMCIA Type II card readers as standard, all within the chassis, maximizing your device capability without adding to your work surface clutter.

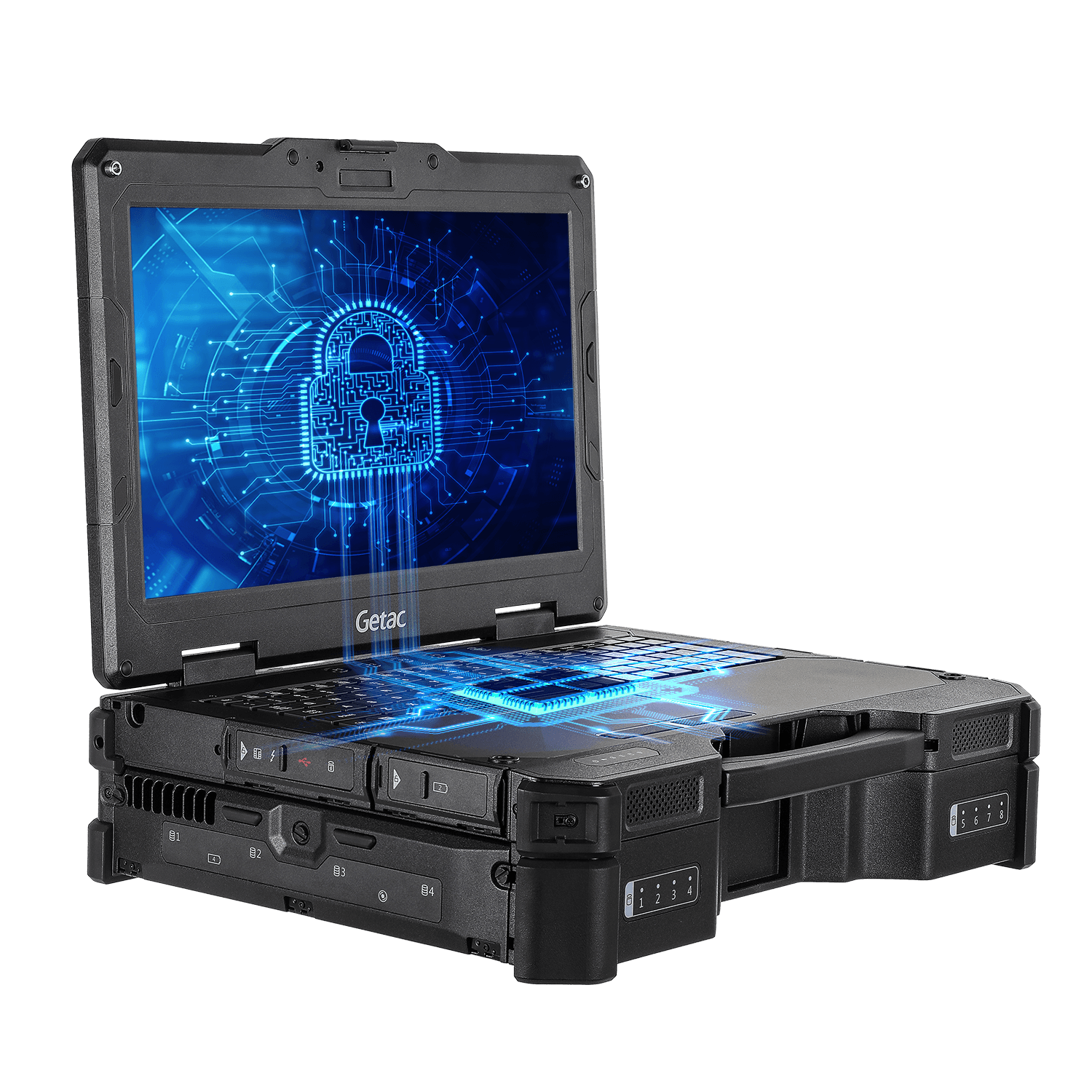

ENHANCED DATA SECURITY

X600 Server offers a diverse suite of security features. For data security, all storage drives are user-removable without tools, with the Trusted Platform Module (TPM) 2.0 dedicated microprocessor also included enabling complete drive encryption capabilities, and a variety of other authentication enhancements.

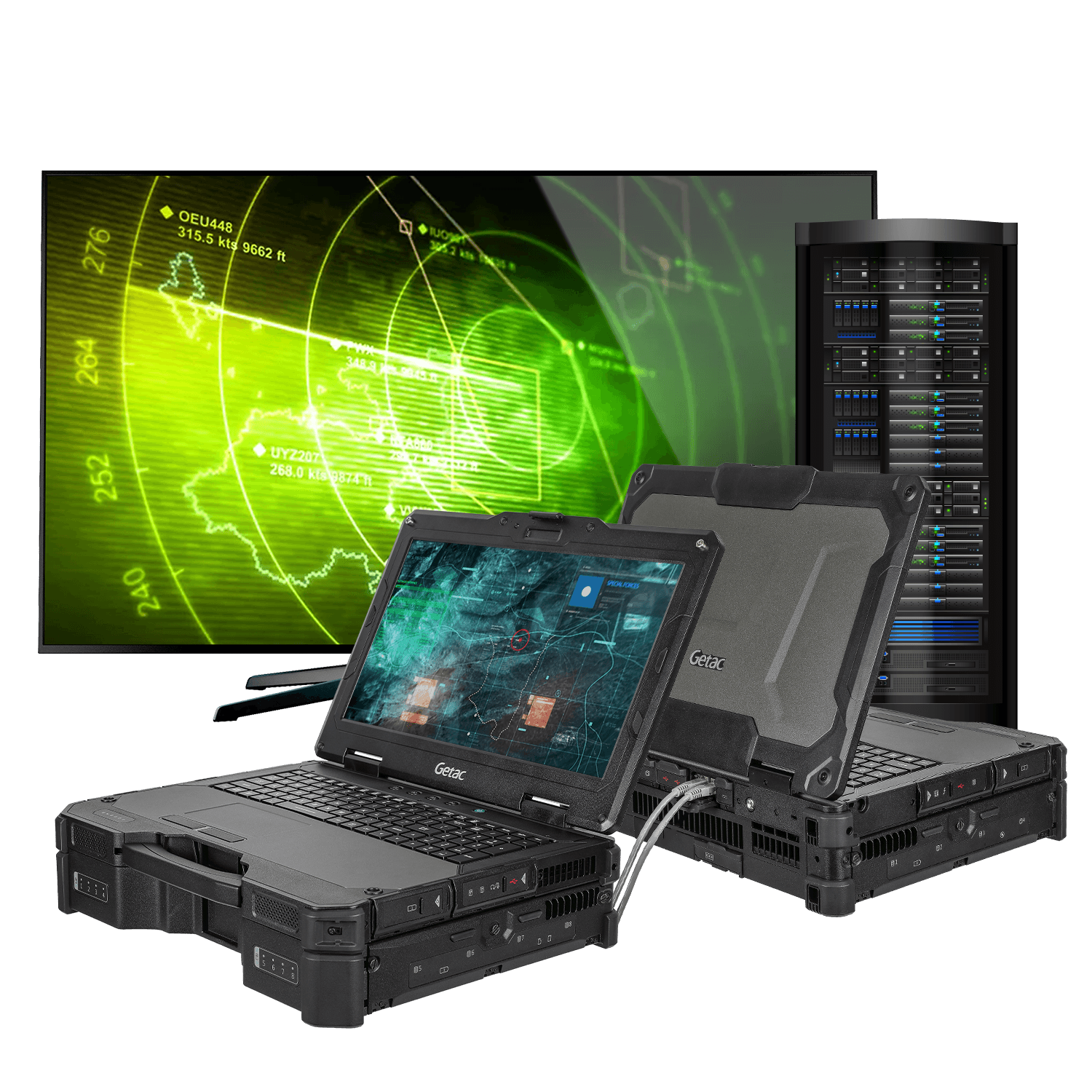

SUPERIOR CONNECTIVITY

X600 Server integrates seamless with a diverse variety of wired networks, servers, and storage devices. Fixed connectivity includes 2.5G BASE-T Ethernet (x2) for ultra-fast simultaneous connection with multiple servers and/or networks, while onboard Thunderbolt 4 (USB-C) and HDMI 2.0 enable connectivity to additional monitors.

EASY STORAGE DRIVE & BATTERY CHANGEOUT

All X600 Server solid-state storage drives (SSDs) are user-removable and toolless, enabling enhanced data security during device storage, and greater convenience during usage. All batteries are also user-removable without tools, and can be changed out (i.e., hot-swapped) without interrupting device operation.

RUGGED AND READY

Engineered to survive and work in outdoor extremes, X600 Server will operate in rain, dust, shock, and vibration. This fully-rugged laptop is MIL-STD-810H, MIL-STD-461G, and IP66-certified to withstand temperatures from -29°C to 63°C (-20°F to 145°F).

GETAC X600 SERVER FEATURES

Windows Server 2022
Up to 22 TB of storage1
2.5G Base-T Ethernet
LumiBond® technology
Thunderbolt™ 4
Operational between -29 °C to +63 °C

X600 SERVER TECHNICAL SPECIFICATIONS

Download PDF

Operating System	Windows Server 2022
Mobile Computing Platform	Intel® Xeon® W-11865MRE vPro® Processor Max. 4.9GHz with Intel® Turbo Boost Technology - 18MB Intel® Smart Cache
VGA Controller	Intel® UHD Graphics
Display	15.6" TFT LCD FHD (1920 x 1080) Protection film 1,000 nits LumiBond® display with Getac sunlight readable technology Optional: Capacitive multi-touch screen
Storage & Memory	32GB DDR4 Optional: 64GB / 128GB DDR4 1TB Enterprise PCIe SSD Optional: 2TB Enterprise PCIe SSD Optional: 2nd Storage: 1TB / 2TB Enterprise PCIe SSD Optional: 3rd Storage: 1TB / 2TB Enterprise PCIe SSD Disk management: RAID 5 i
Keyboard	LED backlit membrane keyboard with integrated numeric keypad
Pointing Device	Touchscreen - Optional: Capacitive multi-touch screen Touchpad - Touchpad with two buttons
Expansion Slot	Smart card reader Optional: ExpressCard 54 + PCMCIA Type II ii Optional: 2nd ExpressCard 54 or 2nd PCMCIA Type II iii Optional: SD card reader
I/O Interface	5M webcam x 1 Thunderbolt™ 4 Type C x 1 USB 3.2 Gen 2 Type-A x 4 LAN (RJ-45) x 2 Audio in/out combo x 1 DC in Jack x 1 HDMI 2.0 x 1 Display port x 1 Serial port (9-pin; D-sub) x 1 External VGA (15-pin; D-sub) x 1 or 2nd Serial port (9-pin; D-sub) x 1 v Optional: 3rd Serial port (9-pin; D-sub) x 1 ii

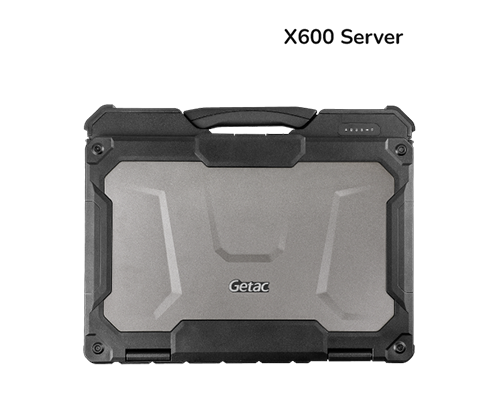

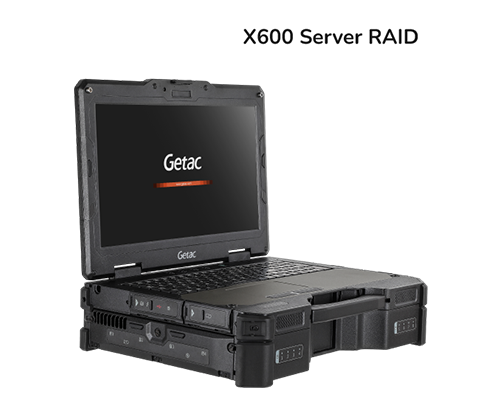

Dimension (W x D x H) & Weight	X600 Server: 412 x 322 x 52.5mm (16.22" x 12.68" x 2.07") vii 4.41kg (9.72lbs) vi, vii X600 Server RAID: 412 x 322 x 108.8mm (16.22" x 12.68 x 4.28") viii 8.51kg (18.76lbs) vi, viii

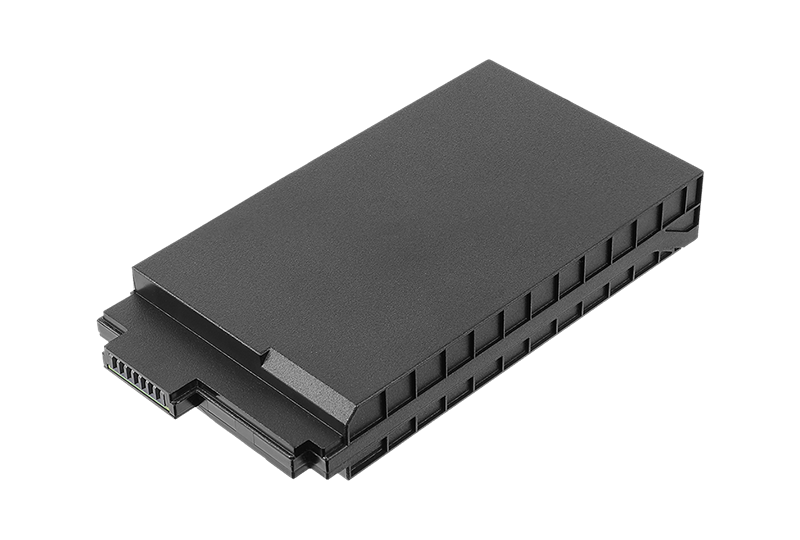

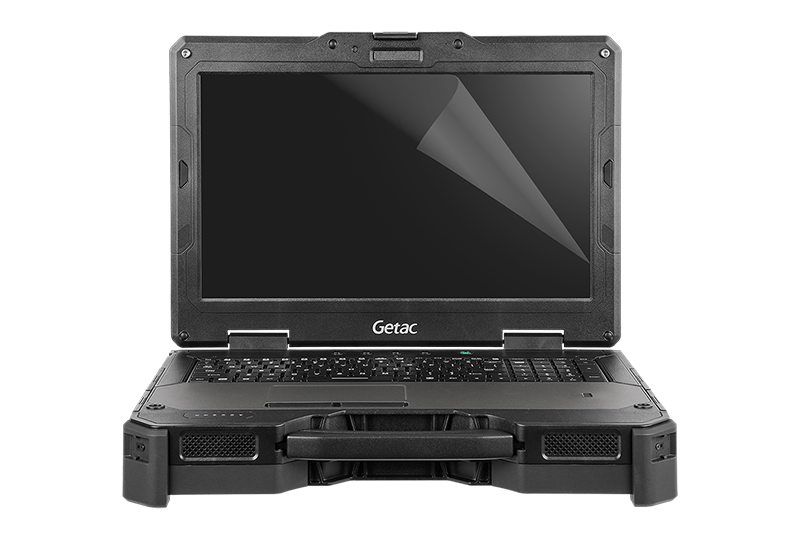

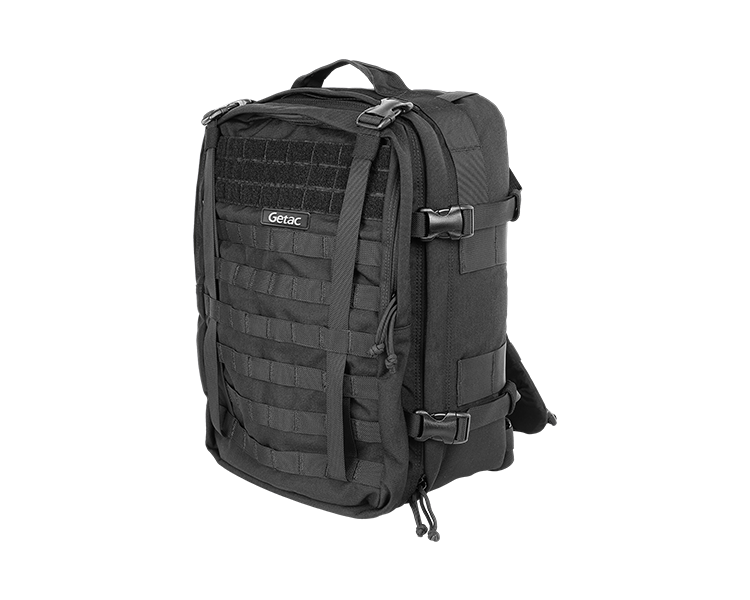

Accessories	Battery (10.8V, typical 6900mAh; min. 6600mAh) x 2 xii AC adapter (150W, 100-240VAC, 50/60Hz) xii Capacitive stylus with tether Optional: Backpack Battery (10.8V, typical 6900mAh; min. 6600mAh) Multi-Bay charger (Dual-Bay) Multimedia bay DVD super multi drive ii, iv Multimedia bay Blu-Ray super multi drive iv AC adapter (150W, 100-240VAC, 50/60Hz) xiii AC adapter (230W, 100-240VAC, 50/60Hz) MIL-STD-461 AC adapter (230W, 100-240VAC) ix Capacitive stylus with tether Protection film Spare SSD kit xiv X-Bay SSD kit xv

RAID 5 configuration will require 3 storages for X600 Server without RAID.
Default spec in the X600 Server RAID
The 2nd ExpressCard 54 and the 2nd PCMCIA Type II card readers are mutually exclusive.
DVD super multi drive and Blu-Ray super multi drive are mutually exclusive.
The 2nd Serial port is optional and mutually exclusive with External VGA.
Weight and dimensions vary from configurations and optional accessories.
Dimension for X600 Server
Dimension for X600 Server RAID.
MIL-STD-461 230W sold separately.
X600 Server without RAID can withstand 4ft drop.
Tested by an independent third-party test lab following MIL-STD-810H.
X600 Server RAID comes with 4 batteries and an AC adapter (230W, 100-240VAC, 50/60Hz).
150W AC Adapter is compatible with X600 Server.
Spare SSD Kit is an enterprice PCIe SSD. Compatible with X600 Server and X600 Server RAID.
X-bay SSD Kit is an Enterprise SATA SSD. Compatible with X600 Server RAID.
Information provided herewith is for reference only, available specification shall be subjected to quotation by request.
