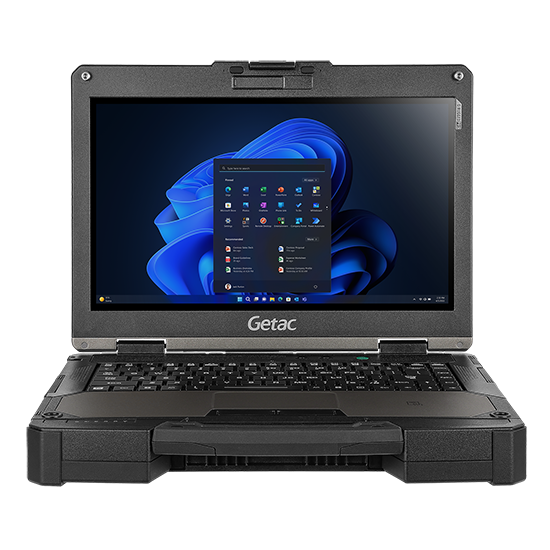

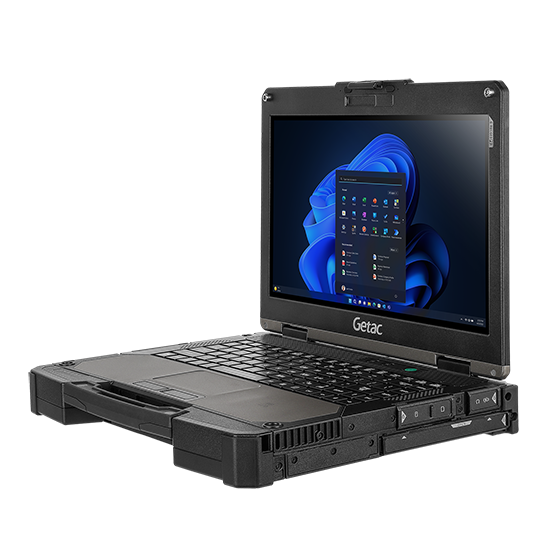

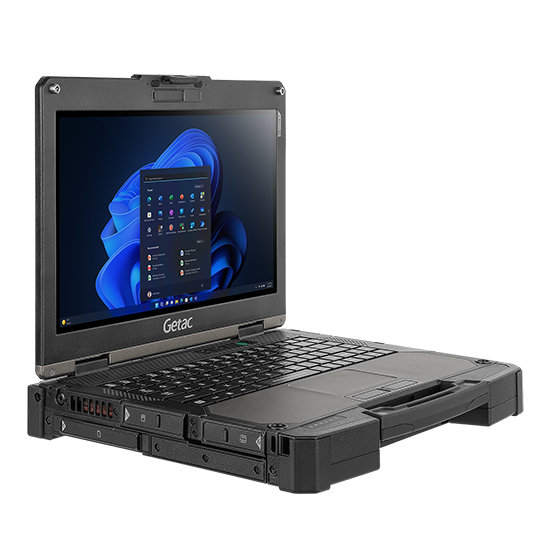

GETAC B360 PRO

MISSION-READY COMPUTING, BUILT FOR EXTREMES

Military-grade and mission-ready, the B360 Pro fully rugged laptop is packed with power and performance you can depend on.

MISSION-READY COMPUTING, BUILT FOR EXTREMES

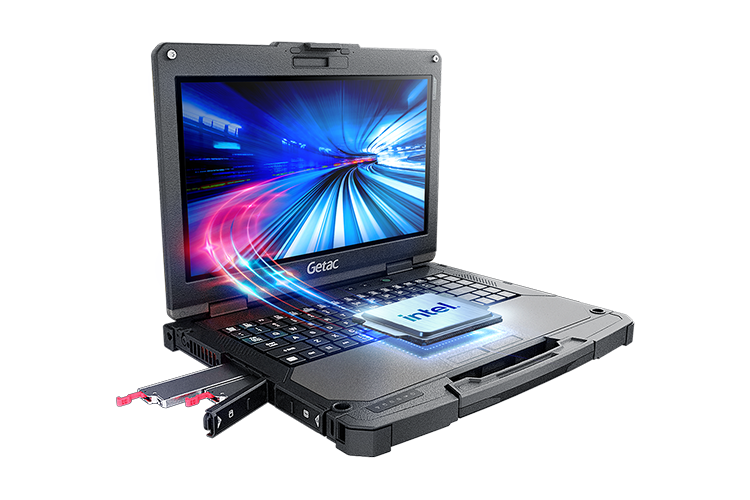

Designed for defense, the B360 Pro fully rugged laptop is purpose-built to perform in challenging tactical environments. Powered by a 12th-gen Intel® Core™ processor with integrated Intel® Iris® and up to 64GB DDR4 RAM, and an optional NVIDIA® GTX 1650 graphics, the B360 Pro delivers extraordinary performance for ultra-fast map display, video playback and device responsiveness under heavy workloads. The B360 Pro has up to 3 SSDs (with an option of up to 6TB storage), offering ample storage; it can also support up to 3 batteries to ensure maximized productivity.

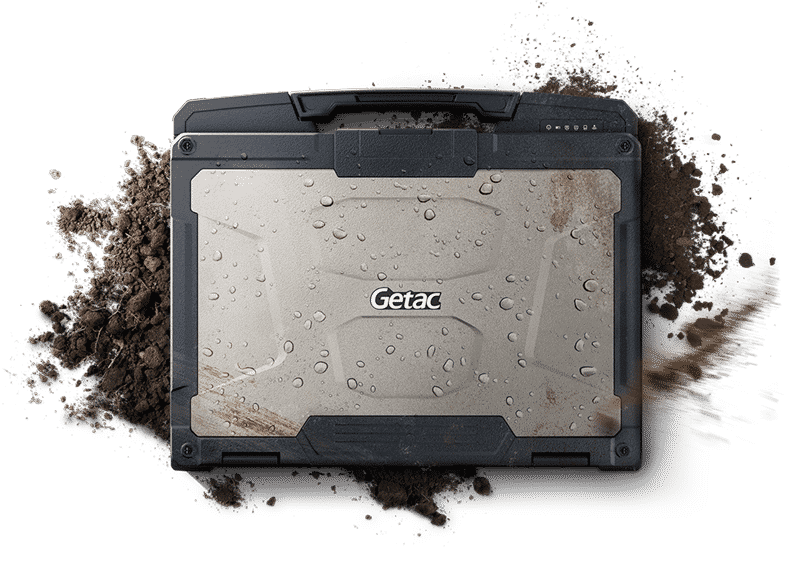

MAKE THE MOST OF MISSION-CRITICAL

Engineered for survivability in military field operations, the B360 Pro is independently certified to MIL-STD-810H, MIL-STD-461G, IP66, and has an optional salt fog certification to withstand rain, dust, shock and vibration in temperatures from -29°C to +63°C (-20°F to 145°F) and a 6-foot drop while in use. It is also intrinsically safe, meeting ANSI/UL 12.12.01 standards (per request) for Class 1 Division 2 hazardous environments.




TOUCHSCREEN OPERABLE, RAIN OR SHINE

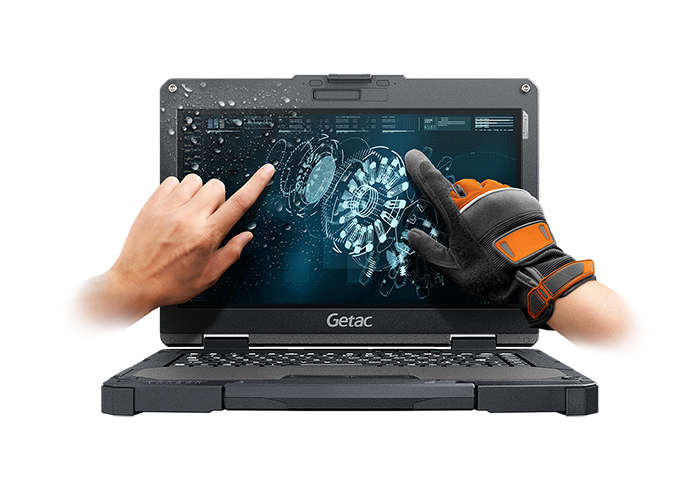

The B360 is designed to operate in diverse working conditions. Its 13.3” capacitive touchscreen display, featuring Getac’s LumiBond® technology, responds to finger, stylus, or glove inputs seamlessly in the rain, snow, or fog, while delivering up to 1,400 nits of screen luminance for comfortable reading and viewing even under direct sunlight.

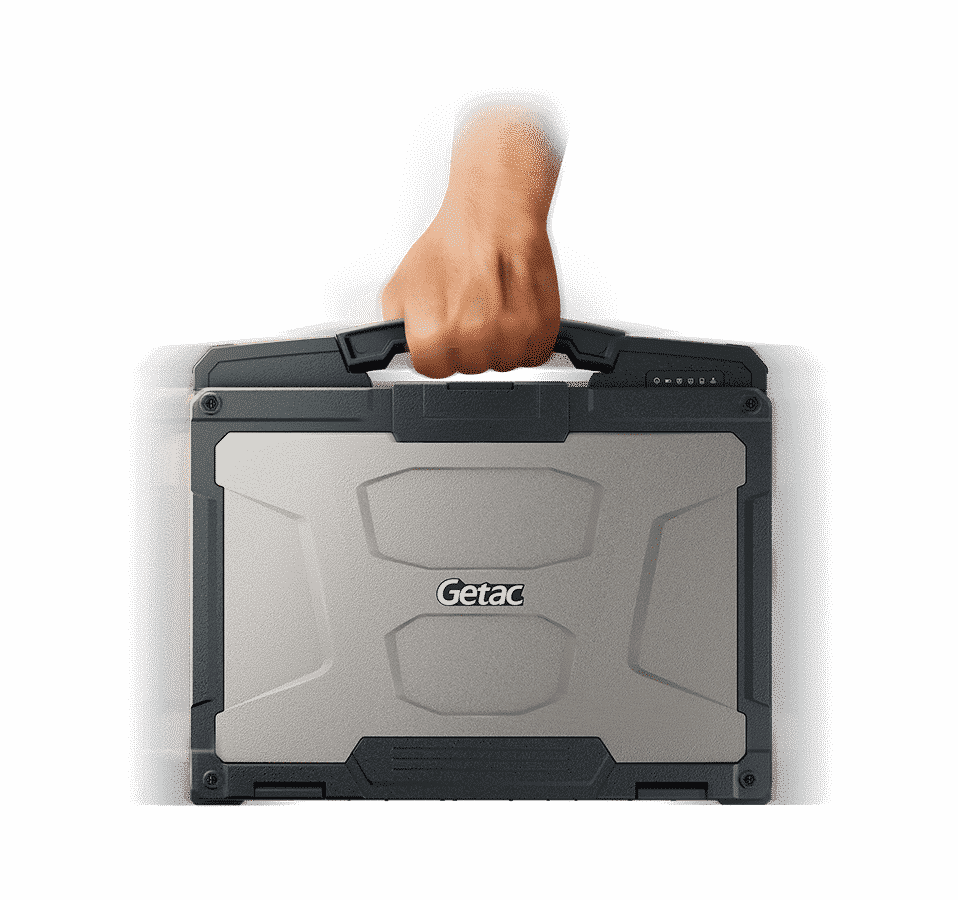

HIGHER PORTABILITY THAT WEIGHS LESS

Starting at 2.32kg (5.11 lbs), the B360 delivers exceptional rugged flagship mobility that makes it easy to carry on foot, store in a compartment, or mount safely in a vehicle, where its rounded corners and simple docking connection, featuring I/O port replication, make in-cabin use safe and convenient.

SECURED THROUGHOUT

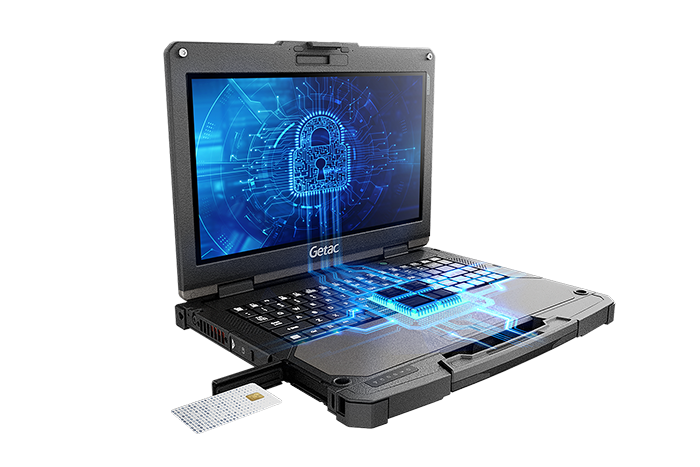

The B360 incorporates top privacy and security measures to ensure your data is protected. Sign in quickly and securely through multi-factor authentication, which includes a smart card reader, an optional HF RFID reader, and an optional Windows Hello facial recognition. Remove its PCIe NVMe SSD storage drives for an added layer of security -- future-forward security preventing threats today.

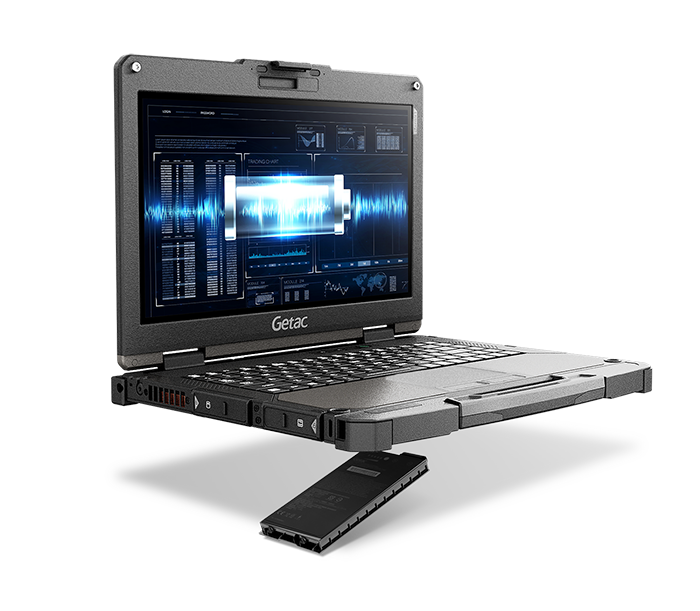

Versatile and Adaptable

Key I/O ports include a serial port, a display port, ThunderboltTM 4 for ultra-high-speed data transfer, PowerShare USB 3.2 for power transfer even when the B360 is turned off, HDMI 2.0 for easy media connection to monitors or projectors, and more. The onboard expansion slot accommodates a smart card reader, an optional SD card reader, or even an optional 1D/2D barcode reader, while dual hot-swappable batteries enable easy battery changeout without interrupting operation.

COMPLETE CONNECTIVITY WHERE IT ISN'T EXPECTED

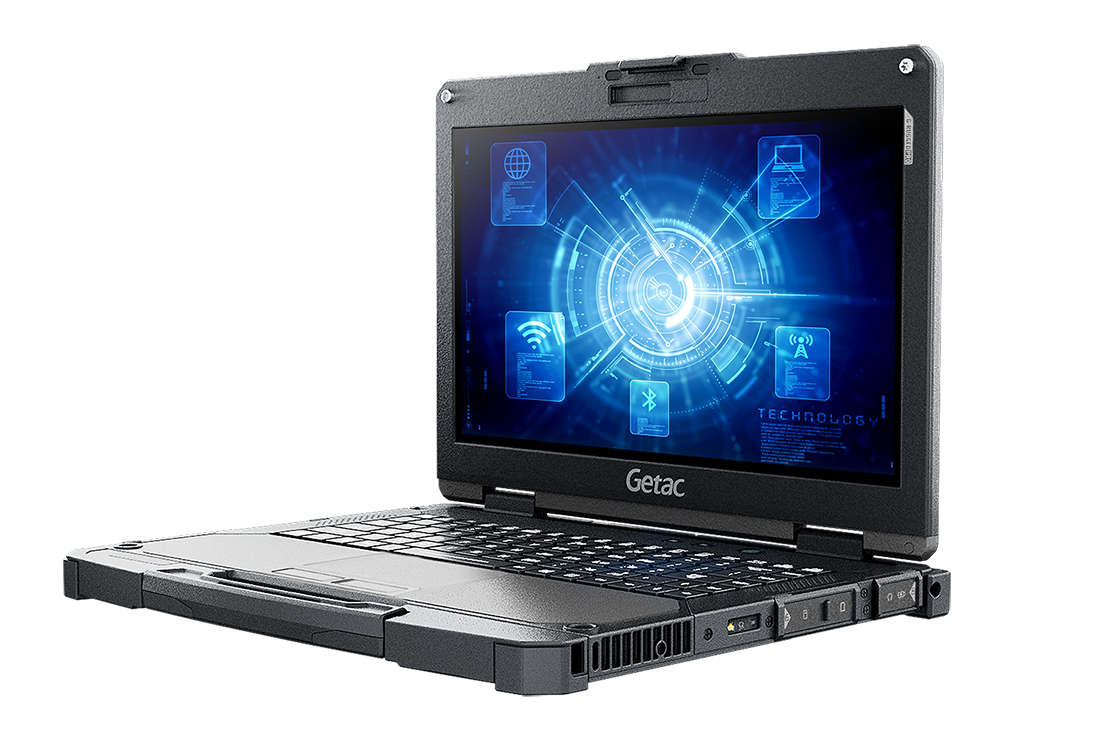

The B360 Pro is built for ultra-high-speed communication with command and smooth coordination of field operations. Optional 4G LTE with integrated GPS, coupled with the latest Intel® Wi-Fi 6E AX211 (802.11ax) technology, enable ultra-broadband redundancy, with Bluetooth 5.3 handling the low-power duties, and dedicated GPS available for ultra-precise navigation and location tracking.




Getac B360 Pro Features

  • 12th Gen Intel® Core™ i5 / i7 Processor
  • Smart Card Reader
  • Intel® Iris® Xe Graphics
  • 1400 nits FHD 13.3" Touchscreen Display
  • Thunderbolt™ 4
  • Wi-Fi 6E AX211, 802.11ax
  • Operational between -29 °C to +63 °C

B360 TECHNICAL SPECIFICATIONS



Operating System Windows 11 Pro
Mobile Computing Platform Intel® Core™ i5-1240P Processor
Max. 4.4GHz with Intel® Turbo Boost Technology
- 12MB Intel® Smart Cache

Platform options:
Intel® Core™ i5-1250P vPro® Processor Max. 4.4GHz with Intel® Turbo Boost Technology - 12MB Intel® Smart Cache
Intel® Core™ i7-1260P Processor
Max. 4.7GHz with Intel® Turbo Boost Technology - 18MB Intel® Smart Cache
Intel® Core™ i7-1270P vPro® Processor
Max. 4.8GHz with Intel® Turbo Boost Technology - 18MB Intel® Smart Cache
Intel® Core™ i7-1280P vPro® Processor
Max. 4.8GHz with Intel® Turbo Boost Technology - 24MB Intel® Smart Cache
VGA Controller Intel® Iris® Xe Graphics i
Optional: NVIDIA® GeForce® GTX1650 4GB discrete graphics controller ii,iii
Display 13.3" Wide Viewing Angle TFT LCD FHD (1920 x 1080) Protection film
1,400 nits LumiBond® display with Getac sunlight readable technology Capacitive multi-touch screen
Storage & Memory 8GB DDR4
Optional: 16GB / 32GB / 64GB DDR4
256GB PCIe NVMe SSD
Optional: 512GB / 1TB / 2TB PCIe NVMe SSD
Optional 2nd storage iv: 256GB / 512GB / 1TB / 2TB PCIe NVMe SSD
Optional multimedia bay storage : 1TB / 2TB SATA SSD
Keyboard LED backlit membrane keyboard
Pointing Device Touchscreen
- Optional: Capacitive multi-touch screen
Touchpad
- Touchpad with two buttons
Expansion Slot Smart card reader x 1
Optional: SD card reader x 1
Optional: Discrete graphics controller, or PCMCIA Type II, or ExpressCard/54 iii
Optional: 1D/2D imager barcode reader
I/O Interface 5M webcam x 1 xxii
Audio in/out combo x 1
DC in Jack x 1
PowerShare USB 3.2 x 1
USB 3.2 Gen 2 Type-A x 1
Thunderbolt™ 4 Type-C x 1 vii
LAN (RJ45) x 1
HDMI 2.0 x 1
Docking connector x 1
Optional: SIM card slot x 1 (Mini-SIM, 2FF) viii
Optional: Windows Hello face-authentication FHD camera (front-facing) x 1 xxii
Optional: RF antenna pass-through for GPS, WWAN and WLAN
Configurable I/O options ix :

1. Serial port (9-pin; D-sub) x 1 + External VGA (15-pin; D-sub) x 1
2. Serial port (9-pin; D-sub) x 1 + Display port x 1
3. Serial port (9-pin; D-sub) x 1 + External VGA (15-pin; D-sub) x 1 + 2nd LAN (RJ45) x 1
4. Serial port (9-pin; D-sub) x 1 + Display port x 1 + 2nd LAN (RJ45) x 1
5. Serial port (9-pin; D-sub) x 2 + External VGA (15-pin; D-sub) x 1
6. Serial port (9-pin; D-sub) x 2 + Display port x 1
7. Serial port (9-pin; D-sub) x 2 + External VGA (15-pin; D-sub) x 1 + 2nd LAN (RJ45) x 1
8. Serial port (9-pin; D-sub) x 2 + Display port x 1 + 2nd LAN (RJ45) x 1
Dimension (W x D x H) & Weight 342 x 281 x 53.5mm (13.46" x 11.06" x 2.11")
3.08Kg ( 6.79lbs) xiii
Accessories High capacity Li-ion battery (10.8V, typical 6900mAh; min. 6600mAh)
AC adapter (90W, 100-240VAC)
Capacitive stylus with tether
Optional:

Carry bag
High Capacity Li-ion Battery (10.8V, typical 6900mAh; min. 6600mAh)
Multi-Bay charger (Dual-Bay)
Multi-Bay charger (Eight-Bay)
AC adapter (90W, 100-240VAC)
AC adapter (120W, 100-240VAC) ii
MIL-STD-461 AC adapter (90W, 100-240VAC)
DC-DC vehicle adapter (120W, 11-32VDC)
Capacitive stylus with tether
Protection film
Vehicle cradle xx
Vehicle dock xx
Office dock
Spare SSD kit
100W Type-C adapter xxi

Units equipped with dual channel memory come with Intel® Iris® Xe Graphics.
120W AC adapter is used for office dock and for device configured with discrete graphics card.
Discrete graphics card, PCMCIA slot, and Expresscard slot are mutually exclusive.
Second storage is optional and will be fitted with a removable cover when not chosen at point of purchase.
Option 1 and 2 are mutually exclusive.
Factory option. Not user swappable.
The configuration with a discrete graphic controller does not support USB-C power delivery function.
Units with 4G LTE option come with an embedded SIM card slot.
External VGA and Display port are mutually exclusive.
Bluetooth performance and connectable distance may be subject to interference with the environments and performance on client devices, users may be able to
reduce effects of interference by minimizing the number of active Bluetooth wireless devices that is operating in the area.
Fingerprint reader and HF RFID reader are mutually exclusive.
HF(13.56MHz) combo HF RFID/NFC reader (iClass, HID Prox, ISO 15693, 14443 A/B, Mifare and FeliCa™ compliant).
Weight and dimensions vary from configurations and optional accessories.
MIL-STD-461 90W AC adapter sold separately.
Available with limited configurations and environment conditions.
Tested by an independent third-party test lab following MIL-STD-810H.
For optional DVD / Blu-Ray super-multi drive, the operating temperature is -10°C to 50°C / 14°F to 122°F.
Available when barcode reader option is selected.
Models require either embedded or standalone GPS module.
Gamber Johnson and Havis vehicle docks are e-mark certified.
Do not support the configurations with discrete graphics card.
5M webcam and optional Windows Hello face-authentication FHD camera (front-facing) are mutually exclusive options.
Support GPS, GLONASS, Galileo, BeiDou and QZSS.
One physical SIM card slot and one eSIM. Network service may vary depending on local telecommunication providers.
Information provided herewith is for reference only, available specification shall be subjected to quotation by request.

B360 Accessories



90W MIL-STD-461 AC ADAPTER

Accessories Pack

100W TYPE-C AC ADAPTER

Accessories Pack

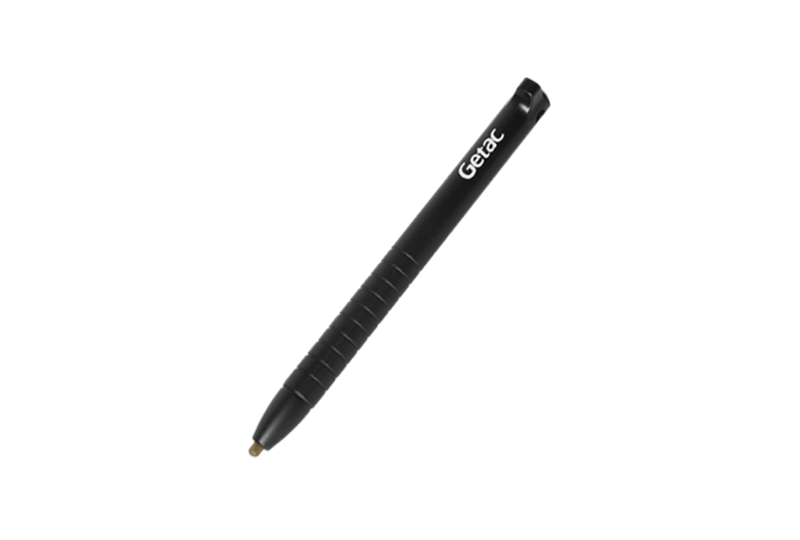

CAPACITIVE HARD TIP STYLUS & TETHER

Accessories Pack

CARRY BAG

Accessories Pack

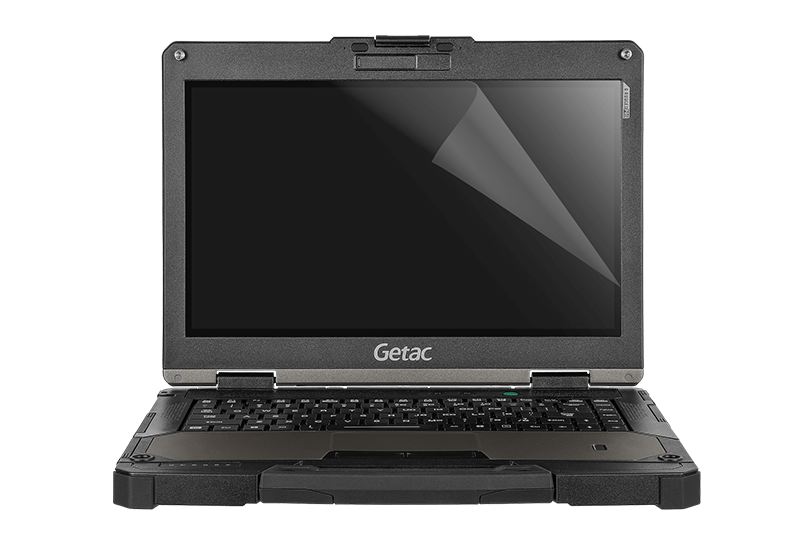

B360 PROTECTION FILM AG

Accessories Pack

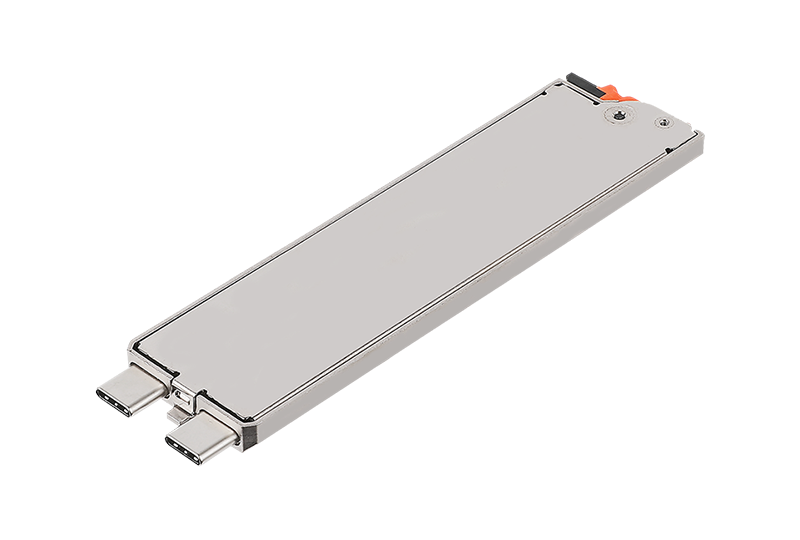

Spare Main Storage
